AS260Q · EO Detection & Tracking System
EO DETECTION • MULTI-SPECTRAL TRACKING

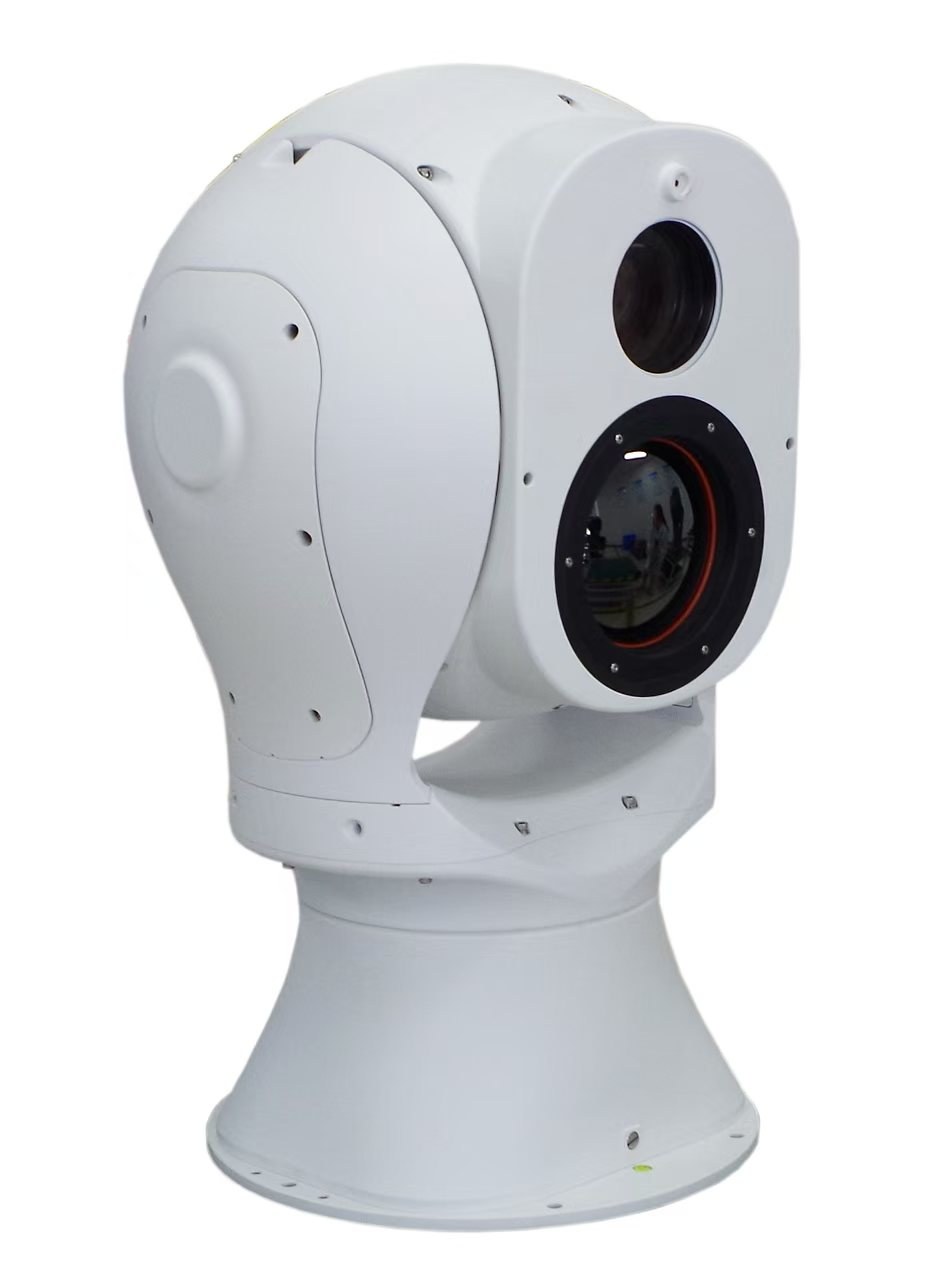

AS260Q EO Detection & Tracking System
Multi-spectral electro-optical detection and tracking system designed for low-altitude security of military bases, critical infrastructure, airports and sensitive facilities. Integrates visible-light imaging, uncooled thermal imaging and intelligent tracking modules to enable detection, identification and continuous tracking of small UAV targets.
AS260Q supports standalone EO operation and radar-cued tasking as part of a layered counter-UAS architecture.
Key Performance Snapshot
Decision-level EO detection and tracking highlights.
Thermal Detection
≥ 1 km
Small UAV (night)
Visible Tracking
≥ 3 km
Clear daylight
Pan-Tilt Coverage
360° / ±90°
Continuous rotation
Ingress Protection
IP67
All-weather outdoor
What It Delivers
AS260Q provides visual confirmation and precision tracking for low-altitude aerial threats. Multi-spectral sensing ensures stable performance across day, night and complex illumination environments.
- Visible-light and thermal imaging fusion
- Automatic detection and continuous tracking
- Effective identification of small UAVs
- Standalone or radar-cued operation
Operational Role
Primary Function
Visual confirmation & tracking
Sensor Type
EO / thermal imaging
Operation
Day / night, all-weather
Cueing Mode
Radar-cued or autonomous
Target Type
Small UAVs
Deployment
Fixed-site installation
Technical Specifications
Public-facing specifications for website presentation.
| Thermal Sensor | Uncooled VOx FPA |
|---|---|
| Spectral Range | 8–14 μm |
| Thermal Resolution | 640 × 512 |
| NETD | < 30 mK |
| Thermal Lens | 23–230 mm continuous zoom |
| Visible Sensor | 1/1.8″ Starlight CMOS |
| Visible Resolution | Up to 1920 × 1080 |
| Minimum Illumination | 0.002 Lux (color) / 0.0002 Lux (B/W) |
| Visible Lens | 12.5–750 mm continuous zoom |
| Pan-Tilt Range | Azimuth 0–360°, Elevation −90° to +90° |
| Positioning Accuracy | ≤ 0.02° |
| Operating Temperature | −40°C to +60°C |
| Ingress Protection | IP67 |
| Total Weight | ≤ 120 kg |
Certain advanced parameters are configuration-dependent and available upon request.
Please contact our technical team for full specifications.
