AS620-B Backpack Navigation Spoofing Equipment

MOBILE • BACKPACK NAVIGATION SPOOFING • RAPID DEPLOYMENT

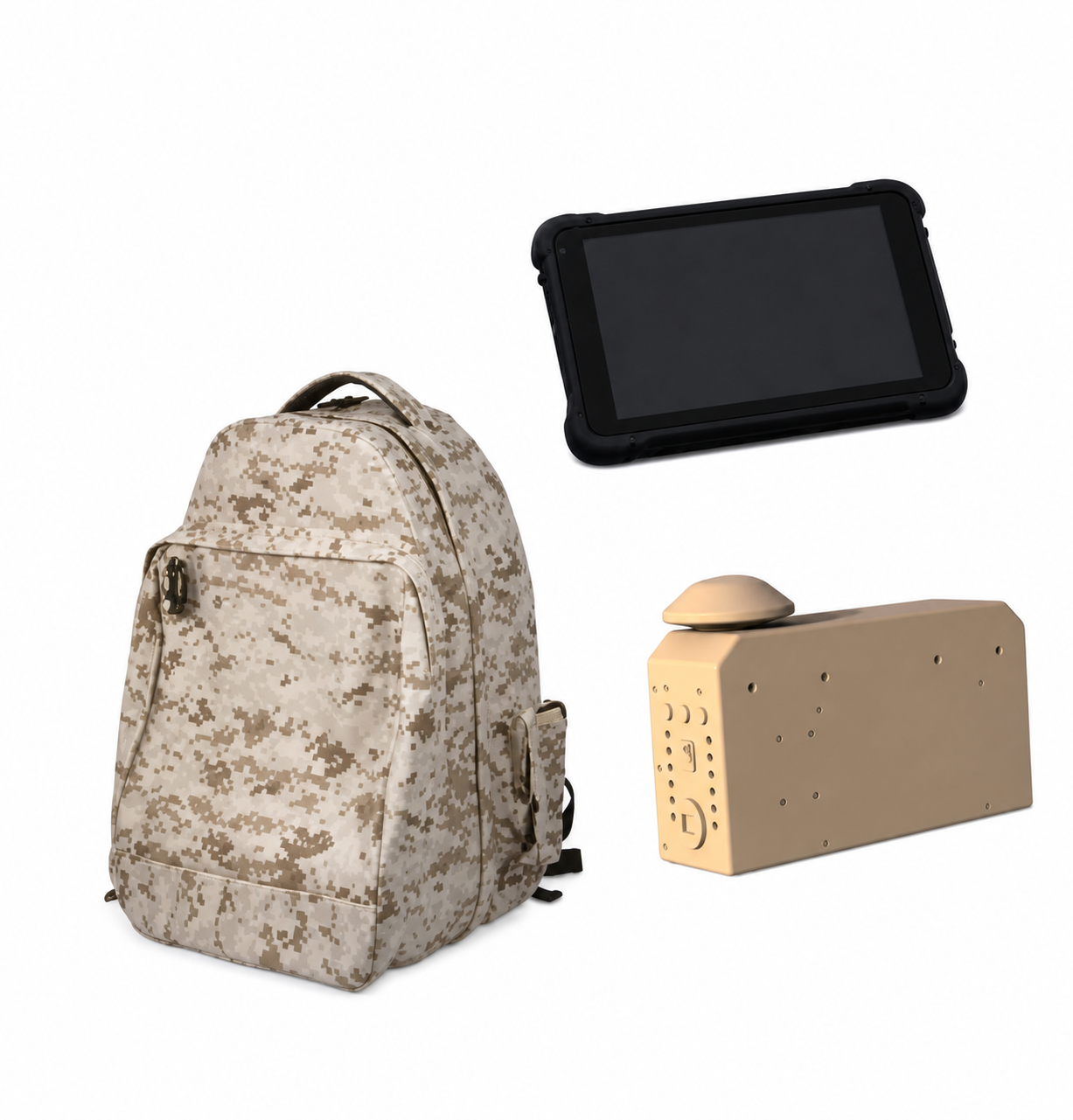

AS620-B Backpack Navigation Spoofing Equipment

AS620-B is a man-portable navigation spoofing system designed for mobile and temporary counter-UAS deployments. Carried as a backpack, it acts on supported UAVs that rely on satellite navigation and provides forced-landing and directional drive-away response modes within the configured defense area.

Request Datasheet View Specs

The published 5 km operating distance is a maximum specification value. Actual performance depends on terrain, line of sight, satellite navigation mode, RF conditions, antenna placement, and authorized system settings.

AS620-B Backpack Navigation Spoofing Equipment

Key Performance Snapshot

Core public-facing parameters for mobile navigation-deception deployment.

Operating Distance
Up to 5 km
Maximum published specification
Antenna Beam
360° / 60°
Horizontal / pitching coverage
Working Time
≥ 12 h
Standby time ≥ 48 h
Main Unit Weight
≤ 5.5 kg
Backpack-oriented mobility

What It Delivers

AS620-B combines a backpack deployment format, built-in lithium battery, and multi-interface control options for field use. Its two response modes support mobile teams that require a rapidly deployable navigation-deception capability.

  • Forced-landing mode for preventing supported UAVs from entering the configured defense zone
  • Directional drive-away mode with operator-selected response direction
  • Navigation spoofing on GPS L1, GLONASS L1, and BeiDou B1
  • 10 W signal transmitting power with up to 5 km published operating distance
  • Ethernet, RJ45, or Bluetooth control connection
  • Built-in lithium battery supporting extended mobile operation
Operational Role
Primary Function
Mobile navigation spoofing
Deployment
Backpack / man-portable
Response Modes
Forced landing / Directional drive-away
Target Dependency
Supported satellite-navigation-dependent UAVs
Power Source
Built-in lithium battery
Control
Ethernet / RJ45 / Bluetooth

Technical Specifications

Public-facing specifications for product presentation and configuration review.

Product Model AS620-B
System Type Backpack Navigation Spoofing Equipment
Deployment Type Backpack / man-portable
Response Mode 1 Forced landing mode
Response Mode 2 Directional drive-away mode
Operating Frequency GPS L1 / GLONASS L1 / BD B1
Signal Transmitting Power 10 W
Effective Operating Distance Up to 5 km
Antenna Beam Horizontal: 360°; Pitching: 60°
Control Interface Ethernet / RJ45 / Bluetooth connection
Power Supply Built-in lithium battery
Standby Time ≥ 48 h
Working Time ≥ 12 h
Main Unit Size 100 × 200 × 300 mm
Main Unit Weight ≤ 5.5 kg
Operating Temperature -20°C to +55°C
Note: Navigation-deception performance applies to supported UAVs relying on satellite navigation. Operating distance and response effectiveness vary with terrain, line of sight, navigation mode, RF conditions, antenna placement, and authorized system settings. Use is subject to applicable local spectrum regulations and site authorization.
