AS601 & AS603 Navigation Deception Systems

Two fixed-site navigation-deception configurations for authorized counter-UAS deployments. Both systems support directional drive-away and forced-landing response modes for supported civilian UAVs that rely on satellite navigation, while providing different coverage and deployment characteristics.

Published operating distances are maximum specification values. Actual performance depends on antenna configuration, terrain, line of sight, RF conditions, target navigation mode, and authorized site settings.

Key Performance Snapshot

A concise comparison of the capabilities that most clearly distinguish the two navigation-deception systems.

Common Response Modes

2 Modes

Directional drive-away and forced landing

AS601 Distance

Up to 10 km

360° horizontal antenna beam

AS603 Distance

Up to 30 km

Directional antenna configuration

Outdoor Protection

IP65

Specified for both systems

Product Overview

Review both systems side by side before using the full comparison table for detailed technical selection.

AS601

Navigation Spoofing & Interference Equipment

10 km Up to

AS601 is designed for fixed-site, 24-hour all-weather protection of a configured area. It supports navigation spoofing and navigation interference functions, with directional drive-away and forced-landing response modes.

360° horizontal antenna beam with 30° pitching coverage
Navigation spoofing on GPS L1, GLONASS L1, and BeiDou B1
Broader navigation-interference bands covering GPS, GLONASS, BeiDou, and Galileo frequencies listed in the product specifications
Ethernet / RJ45 control interface for fixed-site integration
IP65 enclosure and -20°C to +55°C operating temperature

20 W signal power AC 180-240 V ≤300 W overall power

AS603

Navigation Spoofing Jammer

30 km Up to directional

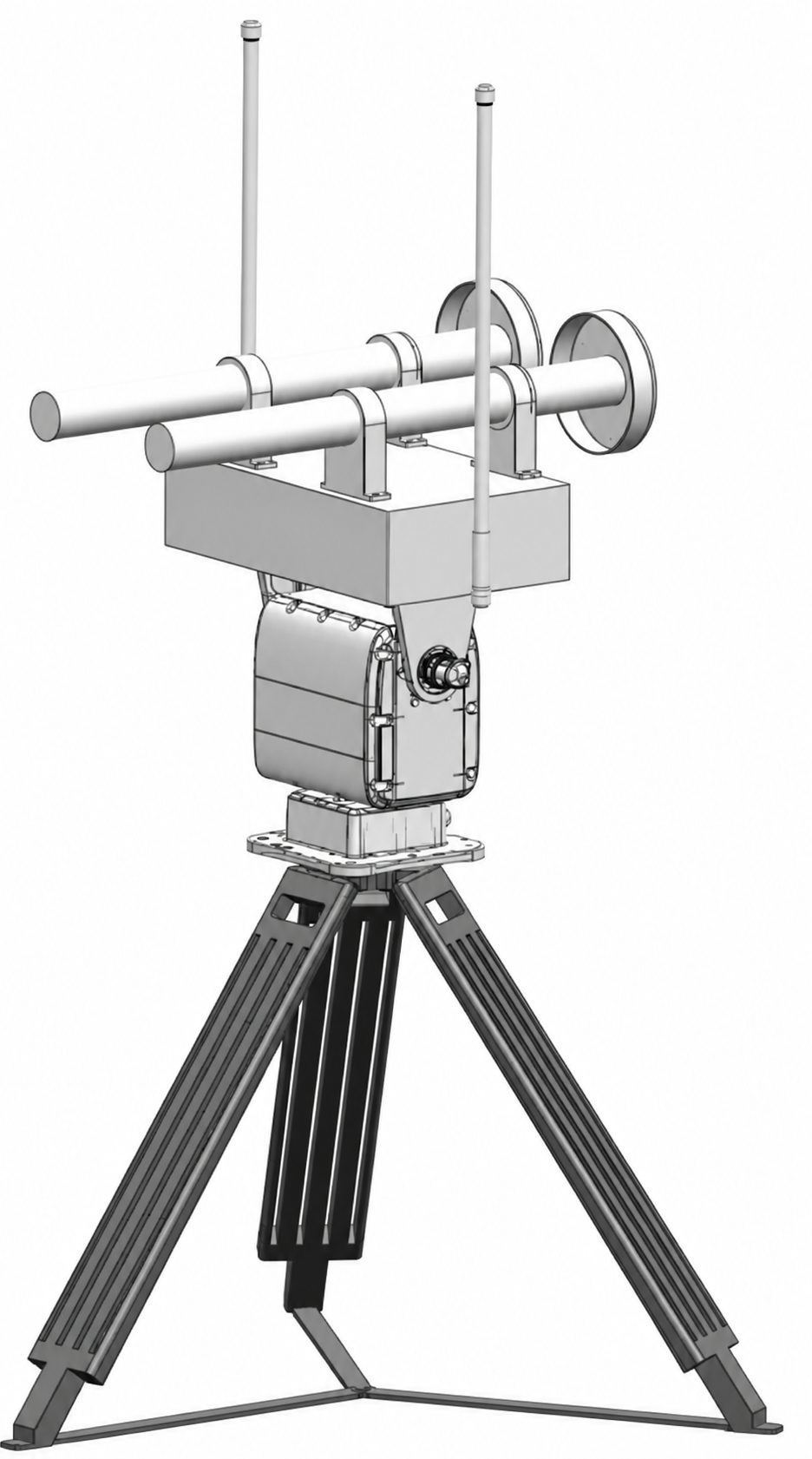

AS603 combines navigation spoofing and navigation interference with a turntable-controlled antenna system. Directional or omnidirectional antenna options support adapting coverage to the protected-area size and environment.

Up to 30 km with a directional antenna or up to 10 km with an omnidirectional antenna
Horizontal turntable rotation of 360° and pitching adjustment from -10° to +60°
Navigation spoofing on GPS L1, GLONASS R1, and BeiDou B1
Coordinated spoofing and interference support for civilian UAVs using multi-mode positioning, as described in the product specifications
IP65 enclosure and -20°C to +55°C operating temperature

20 W signal power AC 220 V ±10% ≤500 W overall power

How the Two Systems Differ

Both systems share the same core response modes, but their antenna and deployment characteristics support different site requirements.

Choose AS601 for fixed-area continuous protection

AS601 is the more straightforward fixed-site configuration. Its 360° horizontal antenna beam, Ethernet interface, lower rated overall power, and specified 24-hour all-weather protection make it suitable for maintaining a configured defense circle.

Choose AS603 for adjustable long-range coverage

AS603 provides directional or omnidirectional antenna options and a turntable with horizontal and pitch adjustment. It is the stronger fit when the site requires adjustable coverage or the maximum published directional operating distance.

Technical Specifications Comparison

Public-facing parameters organized for direct technical comparison.

Specification	AS601	AS603
Product Type	Navigation Spoofing & Interference Equipment	Navigation Spoofing Jammer
Response Modes	Forced landing / Directional drive-away	Directional drive-away / Forced landing
Navigation Spoofing Frequency	GPS L1 / GLONASS L1 / BD B1	GPS L1 / GLONASS R1 / BD B1
Navigation Interference Frequency	GPS L1/L2/L5; GLONASS R1/R2; BD B1/B2/B3; Galileo L1/L2	GPS L1/L2/L5; GLONASS R1/R2; BD B1/B2/B3; Galileo L1/L2
Signal Transmitting Power	20 W	20 W
Effective Operating Distance	Up to 10 km	Directional: up to 30 km Omnidirectional: up to 10 km
Antenna / Coverage	Horizontal beam: 360° Pitching: 30°	Directional or omnidirectional antenna
Turntable Angle	Not publicly specified	Horizontal: 360° Pitching: -10° to +60°
IP Rating	IP65	IP65
Control Interface	Ethernet / RJ45	Not publicly specified
Power Supply	AC 180-240 V, 50/60 Hz	AC 220 V ±10%, 50/60 Hz
Overall Power	≤300 W	≤500 W
Operating Temperature	-20°C to +55°C	-20°C to +55°C
Deployment Characteristic	24-hour all-weather protection for the configured area	Adjustable directional or omnidirectional coverage using the turntable configuration

Note: Navigation-deception and navigation-interference performance applies to supported civilian UAVs and depends on satellite-navigation mode, antenna configuration, terrain, line of sight, RF conditions, and authorized system settings. Use is subject to applicable local spectrum regulations and site authorization.
